Cometic Gasket

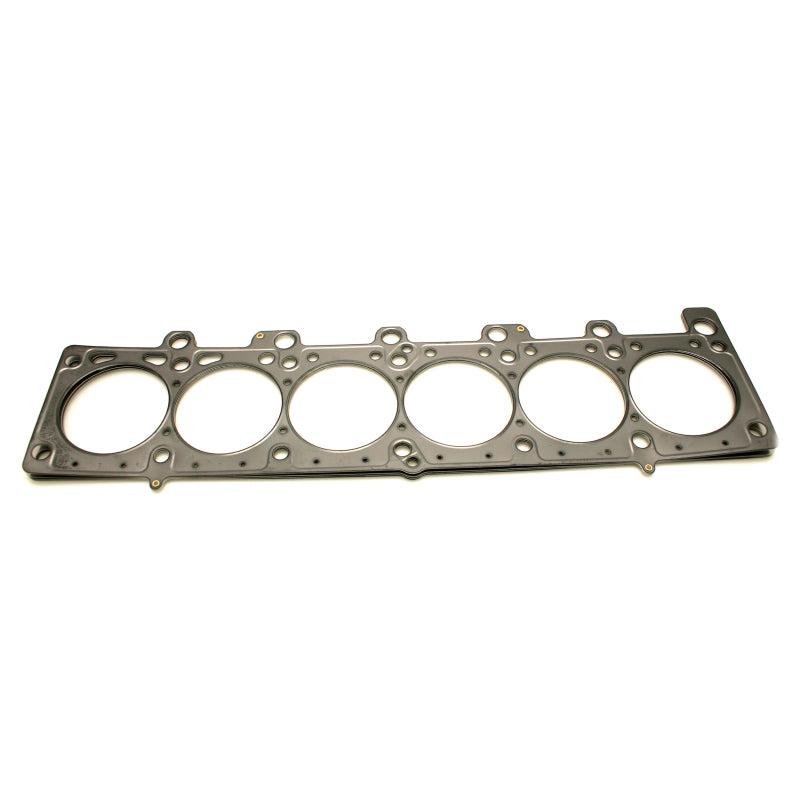

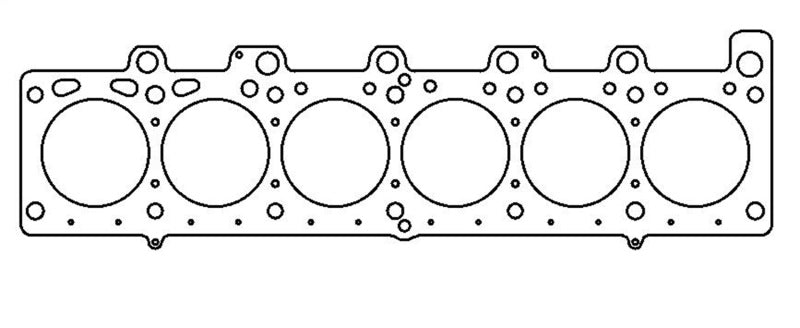

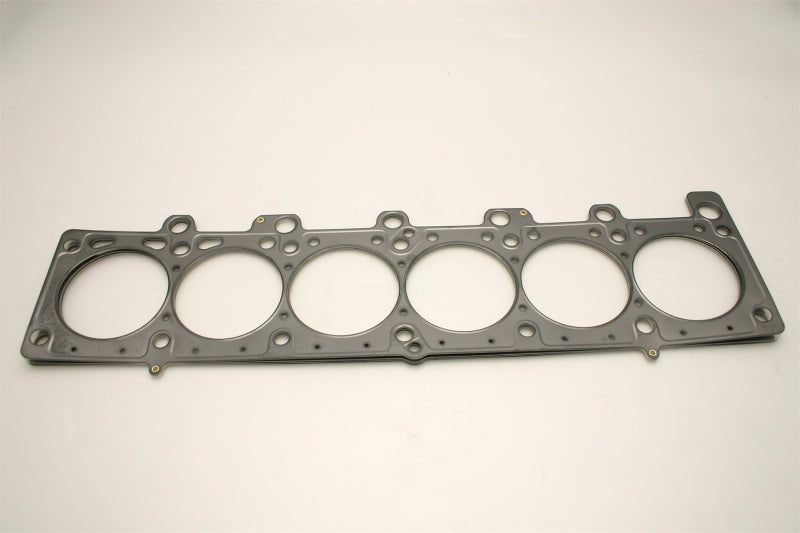

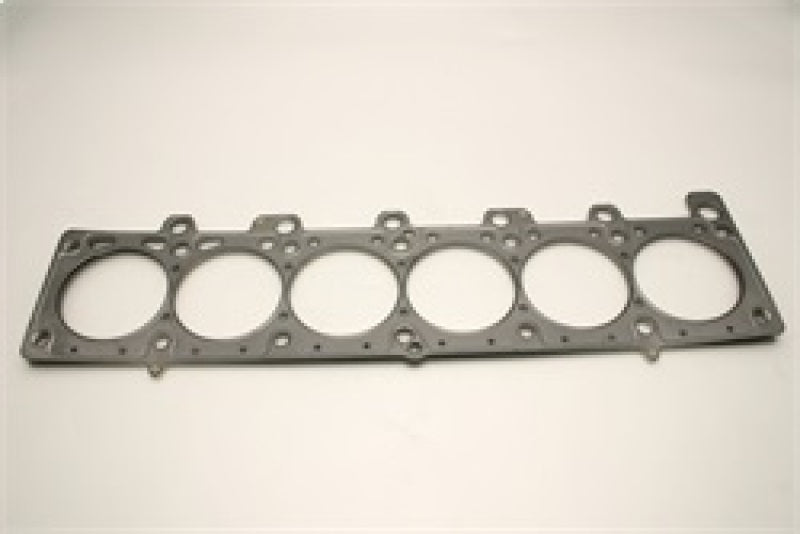

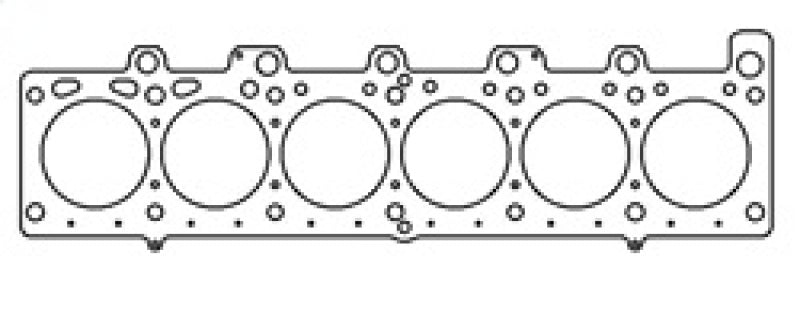

Cometic BMW M20 2.5L/2.7L 85mm .070 inch MLS Head Gasket 325i/525i

Cometic BMW M20 2.5L/2.7L 85mm .070 inch MLS Head Gasket 325i/525i

SKU: CGSC4394-070
Regular price $250.99 USD
Regular price $259.58 USD Sale price $250.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.070". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year Make Model Submodel
1986-1988 BMW 325 Base
1984-1987 BMW 325e Base
1986-1987 BMW 325es Base
1987-1993 BMW 325i Base
1987-1993 BMW 325is Base
1988-1991 BMW 325iX Base
1989-1990 BMW 525i Base
1982-1988 BMW 528e Base
View full details
